Product Introduction
Interventional connecting tubing is essential disposable sterile accessory to build intermediate pipeline between varied interventional instruments during cardiovascular and peripheral vascular minimally invasive operations. It undertakes two core clinical functions: transporting contrast medium or liquid medicine for injection and forming closed pipeline for invasive real-time blood pressure monitoring.

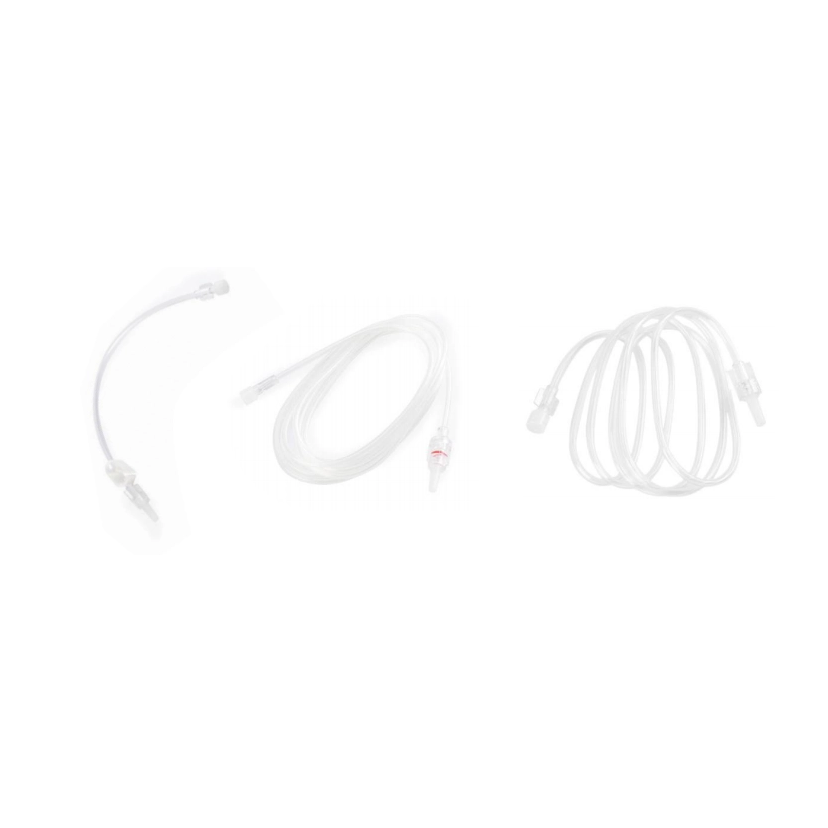

The full product line is divided into three technical specifications by pressure grade and structure: 500PSI non-braided tube(female-male luer lock),1000PSI non-braided tube(female luer-male rotator),1200PSI braided reinforced tube(female luer-male rotator). Outer diameter covers 3.0/3.2/3.65/4.0mm, length ranges from short 10cm up to long 200cm to satisfy short-distance local connection and long-distance bedside pipeline arrangement. All raw materials adopt medical transparent polymer, EO sterilized for single use, and custom-made length is available for special clinical order.
Core Advantages
First, graded pressure resistance is the core competitive merit: ordinary non-braided reaches 500/1000PSI while braided reinforced version boosts to 1200PSI, which can bear high-pressure contrast injection without tube expansion or burst under clinical pressurized pushing.
Second, full transparent tube wall allows medical staff to directly check liquid flow speed and residual air bubbles inside pipeline without detaching fittings, effectively lowering air embolism risk. Diversified OD & length plus two kinds of connector combinations realize flexible collocation with manifolds, Y connectors, inflation syringes and balloon inflation devices. Meanwhile customizable dimension service can match special non-standard pipeline design of individual hospitals.
Application Scenarios
These connecting tubings are widely deployed in cardiac catheter labs of tertiary hospitals and cardiovascular specialty hospitals, mainly matched for PTCA coronary angiography, stent implantation and peripheral vascular interventional dilation. It connects inflation device and balloon catheter for contrast delivery, meanwhile assembles pressure transducer to realize continuous invasive arterial blood pressure monitoring.
Global medical wholesalers stock all specifications for bulk supply to community hospitals and private interventional clinics for daily vascular minimally invasive treatment and routine hemodynamic monitoring.
Specification Summary Table
1. NON-BRAIDED TUBING 500PSI female to male luer lock
External OD(mm) | 10cm | 20cm | 30cm | 60cm | 90cm | 120cm | 150cm |
|---|
3.0 | BR-CT3.00-10 | BR-CT3.00-20 | BR-CT3.00-30 | BR-CT3.00-60 | BR-CT3.00-90 | BR-CT3.00-120 | BR-CT3.00-150 |
3.2 | BR-CT3.20-10 | BR-CT3.20-20 | BR-CT3.20-30 | BR-CT3.20-60 | BR-CT3.20-90 | BR-CT3.20-120 | BR-CT3.20-150 |
3.65 | BR-CT3.65-10 | BR-CT3.65-20 | BR-CT3.65-30 | BR-CT3.65-60 | BR-CT3.65-90 | BR-CT3.65-120 | BR-CT3.65-150 |
4.0 | BR-CT4.00-10 | BR-CT4.00-20 | BR-CT4.00-30 | BR-CT4.00-60 | BR-CT4.00-90 | BR-CT4.00-120 | BR-CT4.00-150 |
2. BRAIDED TUBING 1200PSI female luer lock to male rotator
External OD(mm) | 20cm | 60cm | 90cm | 120cm | 150cm | 180cm | 200cm |
|---|
3.65 | BR-CT3.65-20B | BR-CT3.65-60B | BR-CT3.65-90B | BR-CT3.65-120B | BR-CT3.65-150B | BR-CT3.65-180B | BR-CT3.65-200B |
3. NON-BRAIDED TUBING 1000PSI female luer lock to male rotator
External OD(mm) | 20cm | 60cm | 90cm | 120cm | 150cm | 180cm | 200cm |
|---|
3.20 | BR-CT3.20-20A | BR-CT3.20-60A | BR-CT3.20-90A | BR-CT3.20-120A | BR-CT3.20-150A | BR-CT3.20-180A | BR-CT3.20-200A |
FAQ
Q1: Is connecting tubing single-use disposable?
All tubing is EO sterile disposable medical supply, reusing is prohibited per medical regulation to avoid cross contamination.
Q2: How to select braided or non-braided?
Non-braided for conventional low-pressure infusion; braided 1200PSI for high-pressure rapid contrast injection demanding high burst resistance.
Q3: Can we customize special length out of listed sizes?
Yes, custom cutting length is acceptable for bulk order.
Q4: What is sterile shelf life?
5 years under cool dry sealed storage away from high temperature and sharp scratch.
