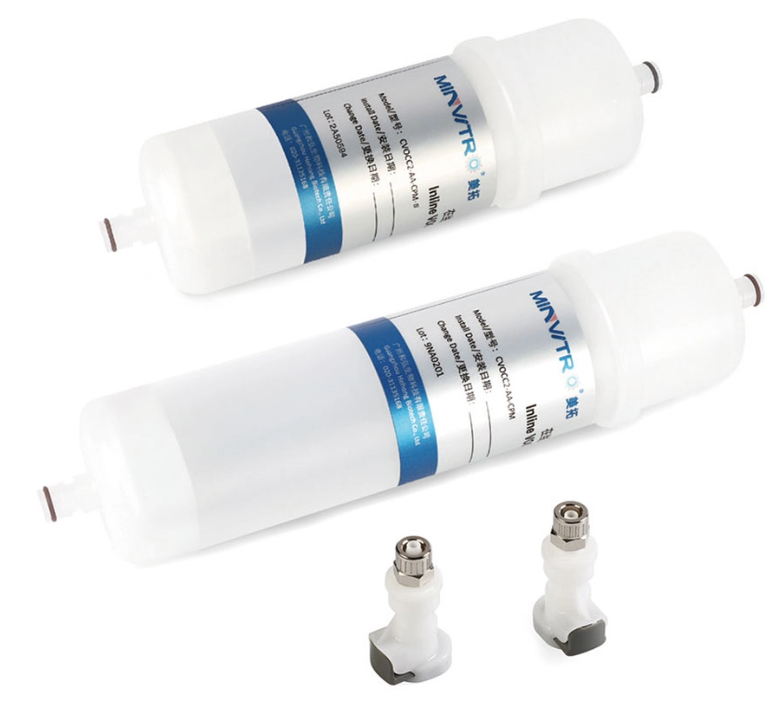

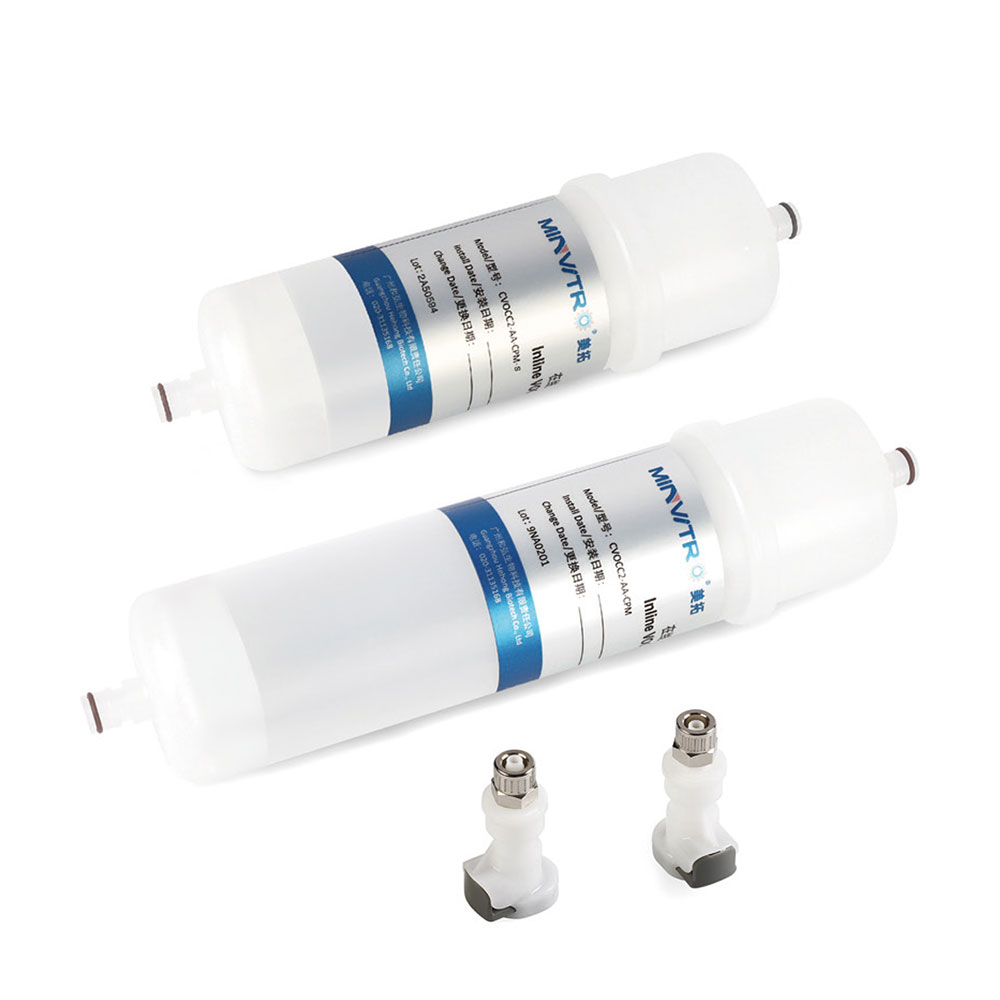

This inline filtration system is engineered specifically for sensitive embryo culture and cell laboratory environments. It combines H14 HEPA particulate filtration with coconut shell activated carbon adsorption to deliver purified gas streams free from contaminants that can compromise culture outcomes. Designed for use with medical-grade gas supplies, the system integrates seamlessly with most standard CO2 incubators, providing a critical layer of protection for IVF clinics, reproductive medicine centers, biomedical research facilities and pharmaceutical production laboratories. Two compact size options accommodate diverse installation space requirements across different laboratory setups.
The two-stage filtration design addresses both particulate and gaseous contamination simultaneously. The H14 HEPA layer blocks 99.99% of airborne viruses, bacteria, dust, allergens, mold spores and pollens larger than 0.1 microns, creating a sterile environment for cell growth. The coconut shell activated carbon adsorption layer uses a special filling technique that reduces dead space and expands absorption capacity by 20 times, efficiently removing volatile organic compounds (VOCs) and harmful odors that can cause developmental abnormalities in embryos and reduce implantation success rates.
All internal components and parts are fixed physically, eliminating the use of adhesives and chemicals that could leach into the gas stream and contaminate cultures. Every unit is manufactured under GMP medical standards and undergoes rigorous testing before shipment. A 3-minute pressure test at 0.6MPa ensures zero leakage, preventing unfiltered air from entering the incubator system and maintaining consistent gas purity levels.
The innovative snap connector and magnetic holder design allows for tool-free installation in less than 2 minutes, minimizing downtime for laboratory operations. For medical purified gas resources, the recommended regular change period is 90-180 days after installation, providing clear maintenance guidelines to help laboratories plan their inventory and scheduling. The two available models offer flexibility for different flow rates and installation constraints.
All filters meet international medical device standards, including CE, ISO13485 and MDR requirements. The manufacturing process implements full traceability from raw material sourcing to finished product distribution, with lot-specific quality documentation available upon request. This compliance ensures that laboratories can meet regulatory requirements for their cell culture and assisted reproduction programs.
Ref. Code | Size | Pressure Test | Activated Carbon Adsorption | Filtration Efficiency | Accessories |
|---|---|---|---|---|---|
CVOCCC2-AA-CPM | 260 ± 2 mm | 3min@0.6MPa No leakage | 15000 m²/g | 99.99% | Adapter / Magnetic Holder |
CVOCCC2-AA-CPM-S | 165 ± 2 mm | 3min@0.6MPa No leakage | 15000 m²/g | 99.99% | Adapter / Magnetic Holder |
IVF clinics and reproductive medicine centers
Embryo culture and assisted reproduction laboratories
Biomedical research facilities
Pharmaceutical cell culture production
Hospital clinical laboratory clean rooms
Established in 1995, Likang Xiangyun Biotechnology specializes in the research, development and production of medical devices and in vitro diagnostic solutions. Our 20,000 m² industrial park in the Khorgos Economic Zone features GMP-compliant manufacturing facilities and dedicated R&D laboratories, with an annual production capacity of over 5 million medical devices.
Our manufacturing processes adhere to ISO13485 and GMP standards, with comprehensive quality control checks at every stage of production. We maintain temperature-monitored cold storage facilities with 2,500 m³ capacity to ensure product integrity during storage and shipping.
We serve over 150 healthcare partners across 15 countries, with optimized logistics solutions for markets in Central Asia, Europe and the Middle East. Our strategic location in the Khorgos Special Economic Zone enables 5-day land freight delivery to Kazakhstan, with DDP services available for most international destinations.
We provide 24/7 technical support via our dedicated hotline, along with on-site installation and training services for laboratory staff. All filters come with a 1-year manufacturer warranty, with extended warranty options available for bulk orders. We also offer lot-specific stability testing reports and free replacement for any defective products.
For medical purified gas resources, the regular change period is 90-180 days after installation. Replacement frequency may need adjustment based on local air quality and usage conditions.
H14 HEPA filters capture 99.99% of particles 0.1 microns and larger, while H13 filters capture 99.95% of particles 0.3 microns and larger. H14 filters provide enhanced protection for highly sensitive applications like embryo culture.
The standard snap connector design is compatible with most major brands of CO2 incubators. Custom adapters are available for specific models upon request.
Yes, we provide OEM and private label services for qualified healthcare partners, including custom packaging and branding options.
Our filters are certified to CE, ISO13485 and MDR standards, and manufactured under GMP medical guidelines.
Contact our team today to receive a customized quote based on your specific requirements. We offer competitive pricing for volume orders and exclusive regional distribution opportunities for qualified partners. Our technical specialists can also provide guidance on filter selection and maintenance protocols to optimize your laboratory operations.
