Ergonomic Handheld Balloon Inflation Device

Product Detail: Balloon Inflation Device

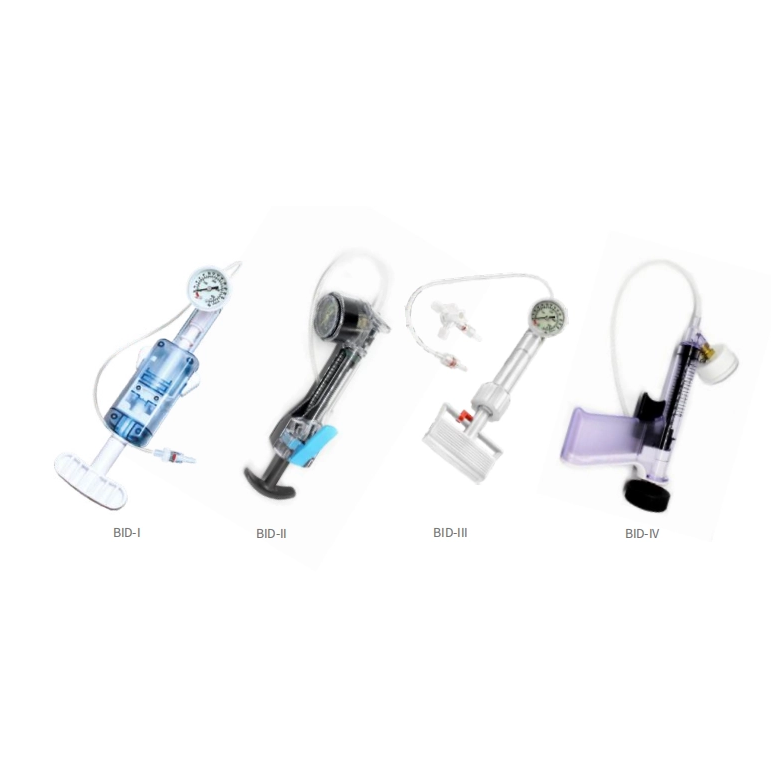

The balloon inflation device is a core indispensable interventional medical instrument specially designed for percutaneous transluminal vascular intervention. Its core function is injecting liquid to pressurize balloon dilatation catheters, inflate the balloon to expand stenotic blood vessels and fix implanted stents inside vessel lumen during cardiovascular and peripheral vascular minimally invasive surgeries. The whole product consists of main injection cylinder, precision pressure gauge, safety locking mechanism and connecting extension tube, with four mature product series marked BID-I, BID-II, BID-III, BID-IV to satisfy different clinical operation habits.

Available specifications cover injection volume of 20ml and 30ml, with working pressure ranging from 26ATM up to 40ATM to match diverse balloon catheter requirements in clinical practice. Every finished device is manufactured with medical-grade transparent raw material, processed under clean workshop and undergoes strict factory calibration for pressure value, to guarantee stable and accurate pressure output during disposable clinical use. All models adopt standardized luer connector for seamless matching with mainstream balloon catheters globally.

Core Advantages

First of all, the ergonomic optimized appearance supports convenient single-hand operation, helping surgeons finish liquid pushing and pressure adjustment with one hand without auxiliary tools, greatly improving intraoperative efficiency. Secondly, built-in safety locking device can fast lock pressure value and realize instant pressure release, effectively avoid sudden pressure surge which may damage blood vessel or balloon catheter.

Equipped with high-precision mechanical pressure gauge, the equipment presents real-time accurate pressure reading for operators to observe inner balloon pressure directly. The inner piston structure enables steady uniform advancing speed during liquid infusion, realizing gradual and precise pressurization and reducing operation risks caused by abrupt pressure change. Multiple optional volumes and pressure grades allow flexible selection for various coronary, peripheral vessel intervention scenarios.

Application Scenarios

This series balloon inflation devices are mainly applied in cardiology department, vascular surgery department of tertiary hospitals, specialized cardiovascular hospitals and interventional catheter labs. Its primary usage focuses on coronary angioplasty and coronary stent implantation for coronary artery stenosis treatment. Besides cardiac surgery, it is also widely used in peripheral interventional operations including lower limb artery dilation, renal artery stenosis balloon expansion and peripheral vascular stent placement.

Additionally, global medical wholesalers and regional medical trading companies purchase full-range specifications for centralized stocking, to supply local private clinics, outpatient interventional centers and medium-sized community hospitals for daily minimally invasive vascular treatment.

Product Specification Table

FAQ

Q1: Is this inflation device single-use only?

Yes, all balloon inflation devices belong to disposable sterile interventional medical supplies, sterilized before delivery. Repeated reuse is forbidden per medical regulations to avoid cross infection.

Q2: How to choose suitable model between 20ml and 30ml?

20ml is mainstream for routine coronary stent surgery; 30ml large-capacity version is preferred for complex peripheral vascular interventional operations needing more contrast medium.

Q3: Can you provide OEM customized packaging for bulk order?

We support customized outer package printing for large batch orders, MOQ can be negotiated based on customer procurement volume.

Q4: What is shelf life of sterile finished goods?

The sterile validity period is 5 years under cool, dry and sealed storage away from high temperature and sharp damage.
